Centrifugal Fans — CEC Series

Centrifugal Fans — CEC Series

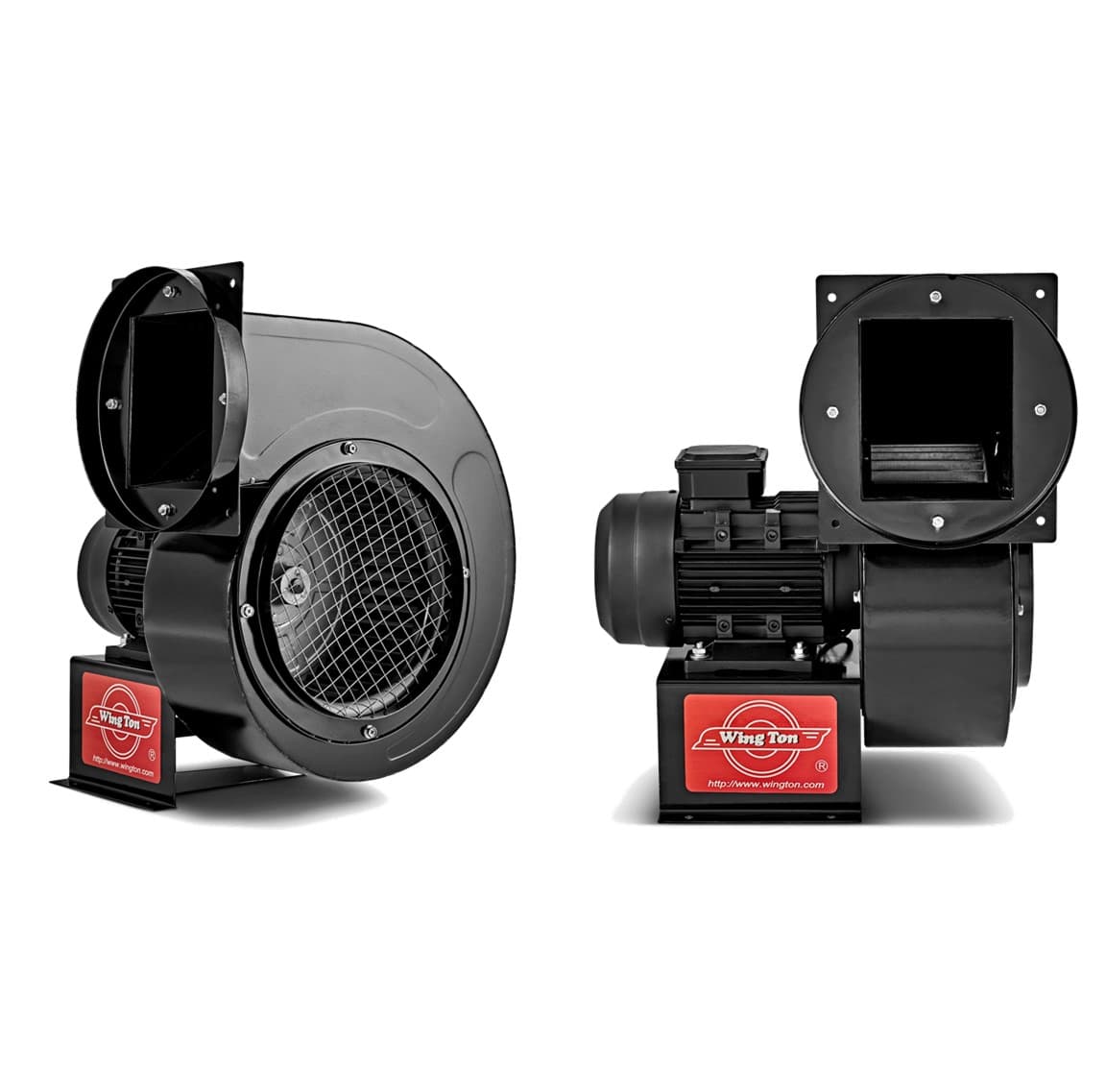

Centrifugal Fans — CEC Series variant

Durable electro-welded steel casing with tough epoxy-polyester coating, galvanised dynamically balanced forward-curved impeller, IP44-protected motor. Designed for OEM exhaust applications and integration into third-party machinery.

Applications

Industrial machinery ventilationMotor coolingElectronics coolingHeat and fume extractionOEM integration

Key Features

  • Electro-welded steel casing
  • Epoxy-polyester coating
  • Forward-curved impeller
  • IP44 motor protection
  • OEM-ready design

Technical Specifications

ModelVoltagePowerRPMAirflowNoise
CEC125ABV220/1/5050 W2800198 m³/h47 dB(A)
CEC125EBV380/3/50180 W2970570 m³/h51 dB(A)
CEC150ABV220V500 W2800545–985 m³/h74 dB(A)
CEC150EBV380V330 W2800545–985 m³/h74 dB(A)
Request a Quote 031 262 1074 WhatsApp

Technical Brochures

CEC125 Brochure CEC150 Brochure
